AWS Deployment
Production deployment on AWS using Terraform with ECS Fargate, RDS, and ElastiCache.
The terraform/ directory contains production-ready AWS infrastructure. Everything is provisioned with a single terraform apply.
Simpler options
If you don't need AWS, you can deploy with Docker Compose, Coolify, or Render instead.

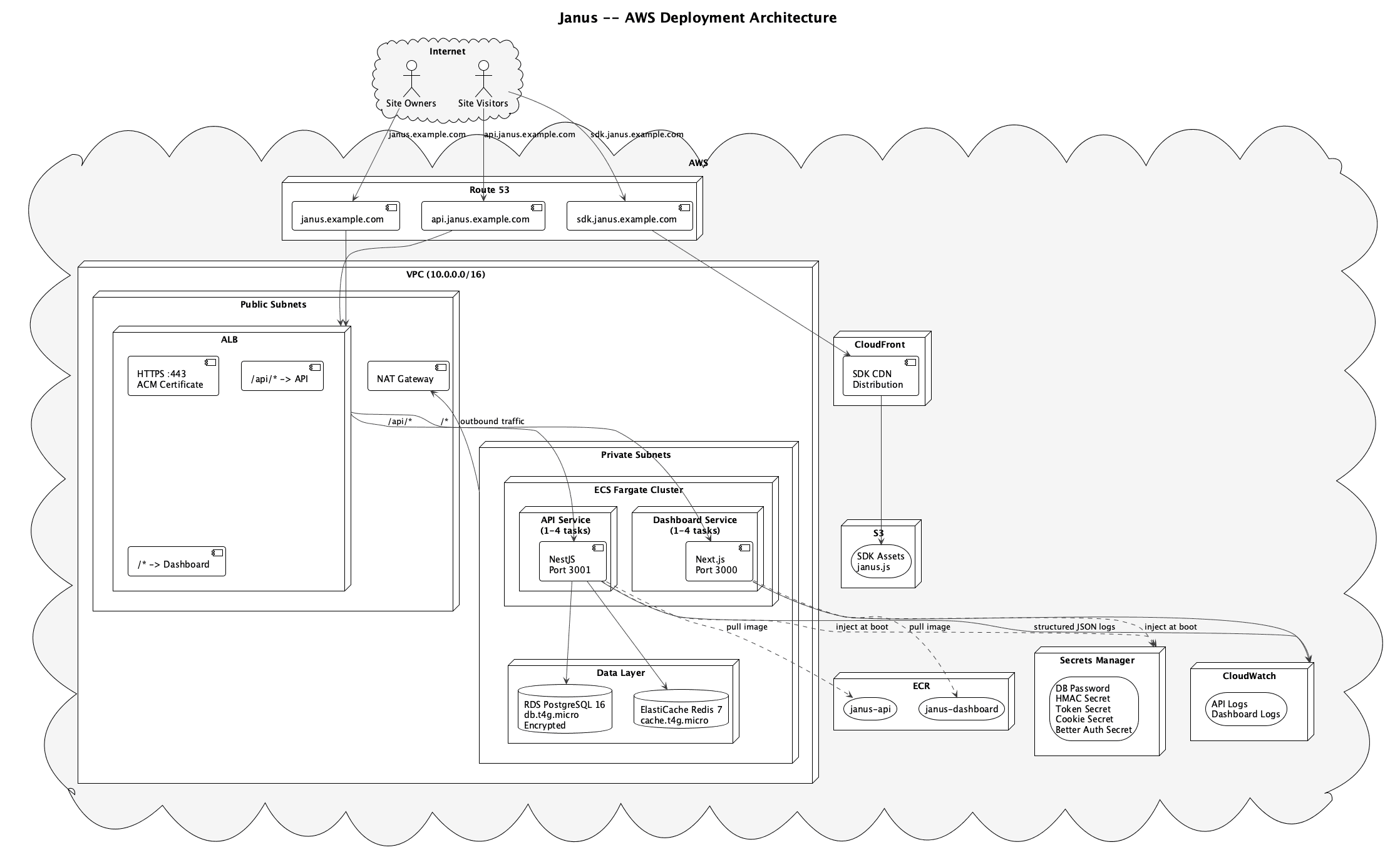

Architecture
| Component | Service | Staging | Production |
|---|---|---|---|
| Compute | ECS Fargate | 0.5 vCPU, 1GB, 1 task | 1 vCPU, 2GB, 2-4 tasks |
| Database | RDS PostgreSQL 16 | db.t4g.micro, single-AZ | db.t4g.small, Multi-AZ |
| Cache | ElastiCache Redis 7 | cache.t4g.micro | cache.t4g.small |
| Load Balancer | ALB | HTTPS, ACM cert | HTTPS, ACM cert |
| CDN | CloudFront | SDK from S3 | SDK from S3 |
| DNS | Route 53 | root, api, sdk subdomains | root, api, sdk subdomains |
| Secrets | Secrets Manager | auto-generated | auto-generated |
| Logs | CloudWatch | JSON structured | JSON structured |
| Images | ECR | 10-image retention | 10-image retention |
ECS services auto-scale between 1 and 4 tasks based on CPU and memory utilization.
Prerequisites
- Terraform >= 1.5
- AWS CLI configured with credentials
- A registered domain in Route 53 (or delegate NS records)
Deploy
cd terraform
terraform init
# Staging
terraform plan -var-file=environments/staging.tfvars
terraform apply -var-file=environments/staging.tfvars
# Production
terraform plan -var-file=environments/production.tfvars
terraform apply -var-file=environments/production.tfvarsSecrets (HMAC, JWT, cookie, auth) are auto-generated on first apply and stored in AWS Secrets Manager. They're injected into ECS task definitions as environment variables.
Environment files
staging.tfvars
environment = "staging"
domain = "staging.janus.example.com"
api_cpu = 512
api_memory = 1024
api_desired_count = 1
db_instance_class = "db.t4g.micro"
db_multi_az = false
redis_node_type = "cache.t4g.micro"production.tfvars
environment = "production"
domain = "janus.example.com"
api_cpu = 1024
api_memory = 2048
api_desired_count = 2
db_instance_class = "db.t4g.small"
db_multi_az = true
redis_node_type = "cache.t4g.small"Terraform resources
| File | Resources |
|---|---|
main.tf | Provider, VPC, subnets |
ecs.tf | ECS cluster, task definitions, services, auto-scaling |
rds.tf | PostgreSQL RDS instance, subnet group, parameter group |
elasticache.tf | Redis cluster, subnet group |
alb.tf | Application Load Balancer, target groups, listeners |
cloudfront.tf | CDN distribution for SDK delivery |
route53.tf | DNS records (root, api, sdk subdomains) |
acm.tf | SSL/TLS certificates |
secrets.tf | Secrets Manager for auto-generated secrets |
security-groups.tf | VPC security groups |
outputs.tf | ALB DNS, CloudFront URL, RDS endpoint |
CI/CD integration
The deploy.yml GitHub Actions workflow handles deployment automatically:
- Builds Docker images for API and Dashboard
- Pushes to ECR
- Updates ECS task definitions
- Uploads SDK to S3
- Invalidates CloudFront cache
AWS authentication uses OIDC with short-lived credentials — no long-lived access keys. Production deploys require manual approval via GitHub Environments.
Monitoring
- Health checks: ALB health checks hit
/health(liveness) and/ready(DB + Redis connectivity) - Logs: JSON structured logs in CloudWatch, queryable with Insights
- Metrics: Prometheus endpoint at
/metrics, scrapeable by CloudWatch agent or external Prometheus - Alerts: Configure CloudWatch Alarms on ECS CPU/memory, RDS connections, and Redis evictions
Cost estimate
| Component | Staging (monthly) | Production (monthly) |
|---|---|---|
| ECS Fargate | ~$15 | ~$60 |
| RDS | ~$15 | ~$30 |
| ElastiCache | ~$12 | ~$25 |
| ALB | ~$16 | ~$16 |
| CloudFront | ~$1 | ~$5 |
| Route 53 | ~$1 | ~$1 |
| Total | ~$60 | ~$137 |
Costs vary by region and traffic. These estimates assume us-east-1 with moderate traffic.
Destroying infrastructure
terraform destroy -var-file=environments/staging.tfvarsThis removes all resources including the database. Make sure to export any data before destroying.
